Steel expanded gratings for flooring have to be fixed to a support structure to prevent their rising or sliding off.
To do this, use standard stainless steel or galvanised dowel pins. Ladders cleats have round raised holes to ensure non-slip surface.

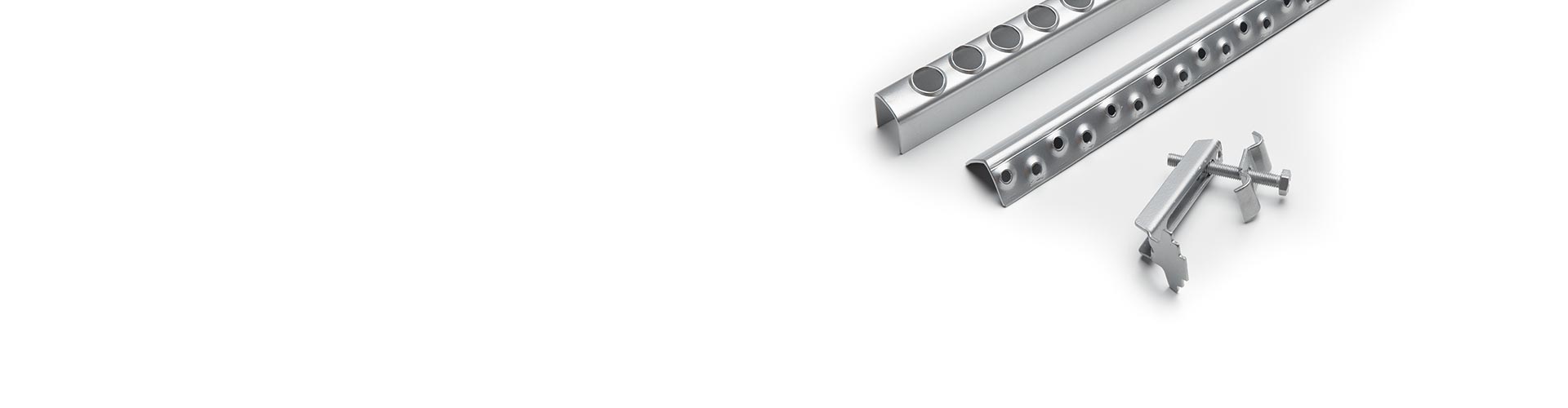

Fastening piece consists of four parts:
Top part – disc (“butterfly”, clamp)
Bottom part – moulded metal piece
M8 machine screw –60, 70, 80 mm long
M8 square nut
The disc – is the top part of the fastening piece without a washer and a nut. The disc diameter is 53 mm and it can be used for 30 x 30 mm mesh, the suitable nut is M8.
All the parts are hot-dip galvanised in harmony with ISO 1461.
Fastening pieces are assembled for delivery.
hot-dip galvanised
stainless steel
M8 x 70 mm
Select screw length according to the height of the grating load-bearing bar.
This type of fastening pieces can be used for pressure-locked gratings as well as for SP welded gratings with mesh sizes of 33 x 33 mm and 34.3 x 38.1 mm.
Our recommendation is to use at least four fastening pieces to hold the grating in position.
As a standard we manufacture different lengths of ladders from steel.
Material: steel – without surface finish, 2 mm thickness
Length: 500 mm
Width: 35 mm
Weight: 0.80 kg
Material: steel – without surface finish, 2 mm thickness
Length: 485 mm
Width: 50 mm
Weight: 0.96 kg
Your specific requirements present no obstacle for us. After mutual consultations we are able to meet your requirements and tailor-make materials for you.
Do you have any specific manufacturing requirements?
As a standard, safety stepping edges (nosing) are fitted on stair treads and gratings to provide non-slip protection. Nosing is welded onto the edge of the grating or tread and makes the product more stable. It is made in steel – raw, without any surface finish.
